MY Packing
JIS Standard O-Rings
MY Packing
MY Packing Details
- Can be used as a piston seal to lower pressure of hydraulic and pneumatic equipment
- Dimensions directly interchangeable with P Series O-Ring (fits groove)
- Minimizes friction
- Standard material NBR-70-1 (1A)

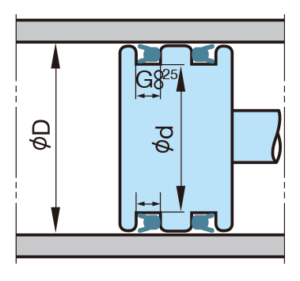

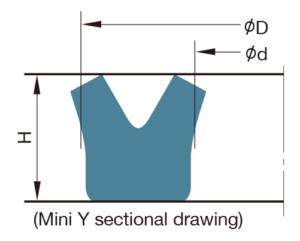

| Nominal No. | d (Nominal) | D (Nominal) | H (Nominal) | d (Groove) | D (Groove) | G (Groove) |
|---|---|---|---|---|---|---|
| MY-3 | 3 | 6 | 2 | 3 | 6 | 2.5 |
| MY-4 | 4 | 7 | 2 | 4 | 7 | 2.5 |
| MY-5 | 5 | 8 | 2 | 5 | 8 | 2.5 |
| MY-6 | 6 | 9 | 2 | 6 | 9 | 2.5 |
| MY-7 | 7 | 10 | 2 | 7 | 10 | 2.5 |
| MY-8 | 8 | 11 | 2 | 8 | 11 | 2.5 |
| MY-9 | 9 | 12 | 2 | 9 | 12 | 2.5 |
| MY-10 | 10 | 13 | 2 | 10 | 13 | 2.5 |
| MY-10A | 10 | 14 | 2.7 | 10 | 14 | 3.2 |
| MY-11 | 11 | 15 | 2.7 | 11 | 15 | 3.2 |
| MY-11.2 | 11.2 | 15.2 | 2.7 | 11.2 | 15.2 | 3.2 |
| MY-12 | 12 | 16 | 2.7 | 12 | 16 | 3.2 |
| MY-12.5 | 12.5 | 16.5 | 2.7 | 12.5 | 16.5 | 3.2 |
| MY-14 | 14 | 18 | 2.7 | 14 | 18 | 3.2 |
| MY-15 | 15 | 19 | 2.7 | 15 | 19 | 3.2 |
| MY-16 | 16 | 20 | 2.7 | 16 | 20 | 3.2 |
| MY-18 | 18 | 22 | 2.7 | 18 | 22 | 3.2 |
| MY-20 | 20 | 24 | 2.7 | 20 | 24 | 3.2 |
| MY-21 | 21 | 25 | 2.7 | 21 | 25 | 3.2 |
| MY-22 | 22 | 26 | 2.7 | 22 | 26 | 3.2 |
| MY-24 | 24 | 30 | 4 | 24 | 30 | 4.7 |
| MY-26 | 26 | 32 | 4 | 26 | 32 | 4.7 |
| MY-32 | 32 | 38 | 4 | 32 | 38 | 4.7 |
| MY-34 | 34 | 40 | 4 | 34 | 38 | 4.7 |
| MY-38 | 38 | 44 | 4 | 39 | 44 | 4.7 |
| MY-39 | 39 | 45 | 4 | 39 | 45 | 4.7 |
