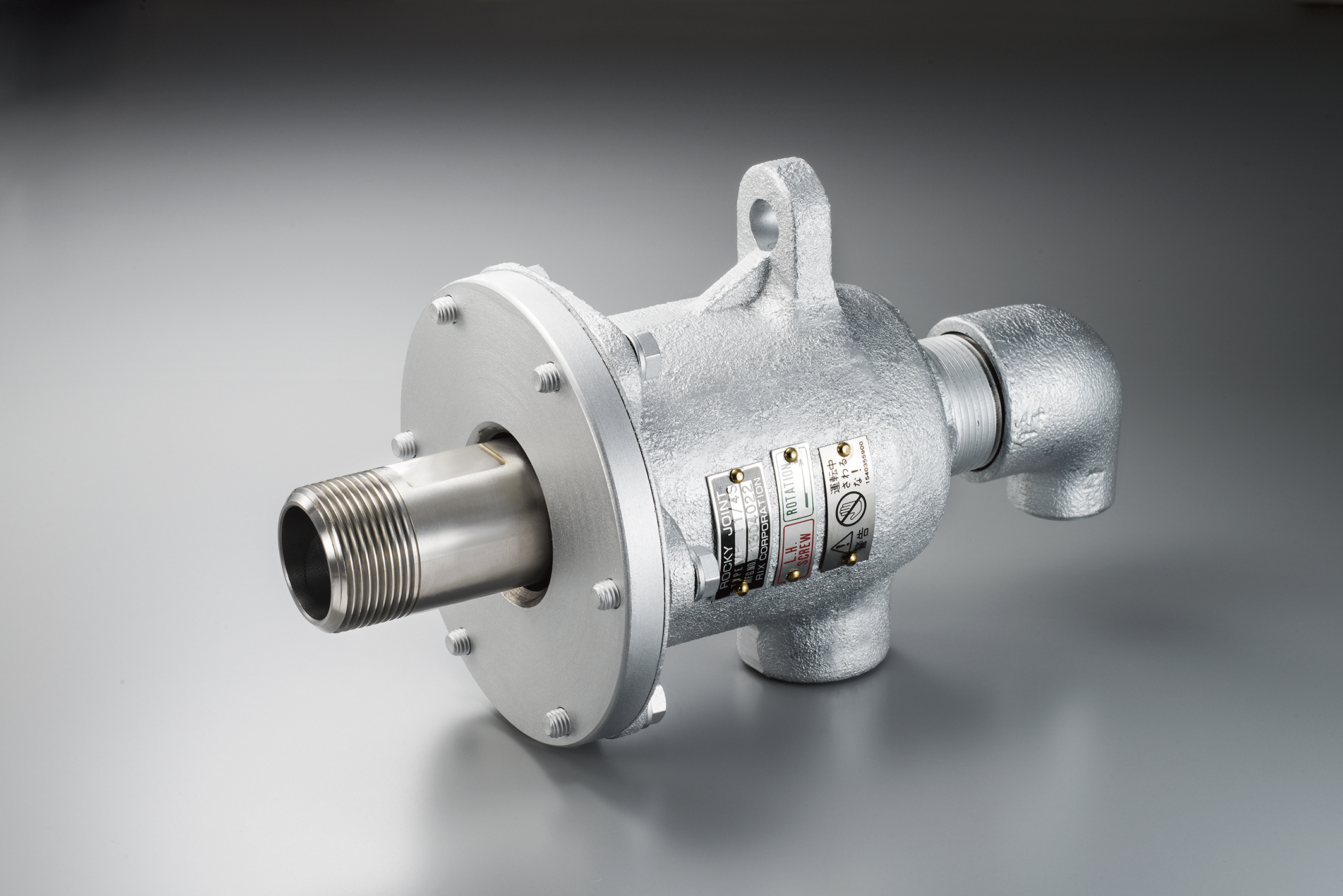

V Type Rotary Joint
Industry: Paper/Pulp
- Saturated Vapor: Dry bearing that is strong for saturated vapor is adopted.
- Easy Maintenance: Simple rotary joint structure makes it easy to exchange parts
Fluid
| Water | Saturated Vapor | Heat Transfer Oil |
|---|---|---|
| N/A | ✔ | N/A |
Operating Specifications
| Pressure | Max. Speed | Temperature |
|---|---|---|
| Max. 1.0 MPa | 150 mim-1 | Max. 180℃ |
| Max. 145 psi | 150 rpm | Max. 356°F |
| Max. 10 bar | - | - |
Inner Pipe Type
| Monoflow | Duoflow (Fixed Pipe) | Duoflow (Rotating Pipe) |
|---|---|---|
| VT | VP | N/A |
Size & Connection Part Shape
- Standard size 3/4 ~ 2 1/2
* Contact us if the size is over standard type. - Connection part shape: Screw (RH or LH) or Flange
| Horizontal | Vertical (Rotating Part is Upper Side) | Vertical (Rotating Part is Lower Side) |
|---|---|---|
| ✔ | N/A | N/A |
Installation Dimensions
*Please request catalog to check details of dimensions
