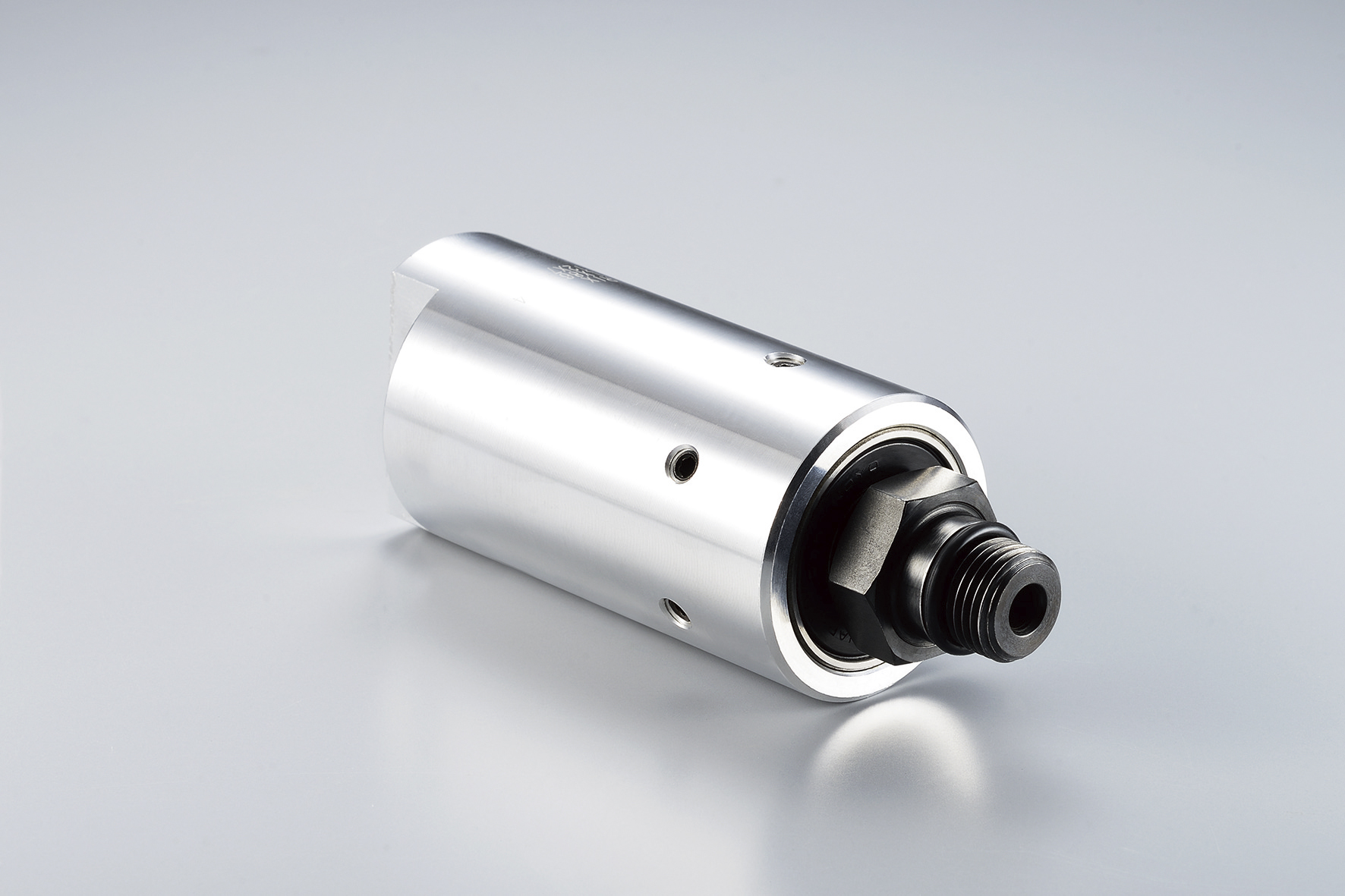

LX84M, 86M Series Rotary Joint

LX84M, 86M Series Rotary Joint

Industry: Machine Tool

  • High-Pressure
  • High-Speed
  • Double drain structure (vertical mounting)


Fluid Coolant Oil Mist Dry Air
Pressure (MPa)0.5~70.2~1N/A
Pressure (psi)72.5~1,01529~145N/A
Pressure (bar)5~702~10N/A

Operating Specifications

Specification Flow Rate (Coolant) Max. Speed Max. Temperature
NumberBelow 20 L/minMax. 15,000 min-1Max. 60 ℃
NumberBelow 5.28 gal/minMax. 15,000 rpmMax. 140 °F

Installation Direction

Horizontal Vertical (Rotating Part is Upper Side) Vertical (Rotating Part is Lower Side

Installation Specification

Rotation Without Fluid Min Flow Rate to Operate Seal (In Case Fluid is Coolant)
Over 10 L/min
Over 2.64 gal/min

Outline Drawings and Installation Dimensions
