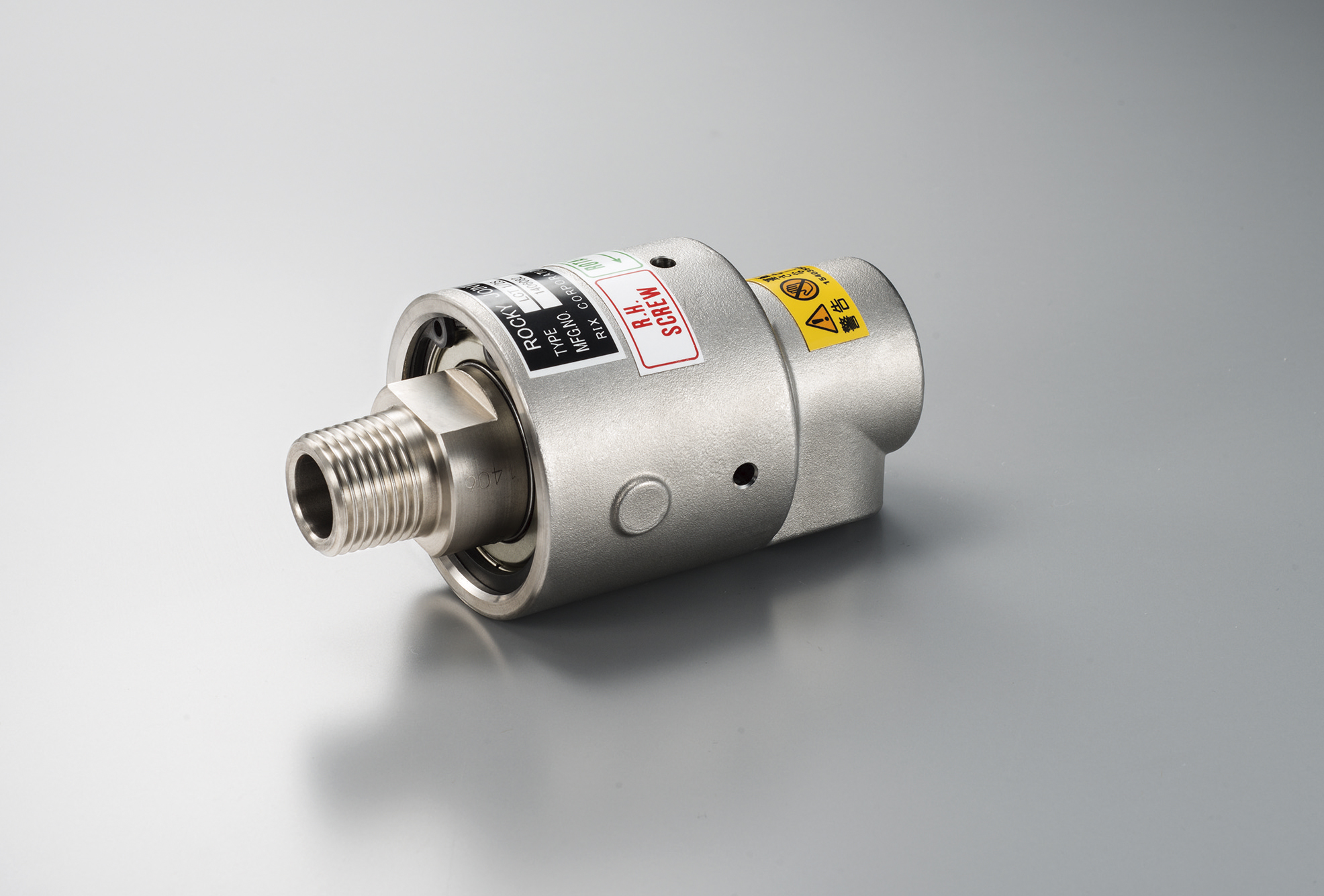

LCH Type Rotary Joint
Industry: Steel, Rubber/Tire, High Function Material
- Heat Tolerance: Packing and grease have high heat tolerance (maximum temperature of 200℃ (392°F))
- Easy Maintenance: Bearing is enclosed in grease and no additional grease is needed. Seal is easily exchanged.
Fluid
Operating Specifications
| Pressure | Max. Speed | Temp. |
|---|---|---|
| Max. 1.5 MPa | 150 mim-1 | Max. 200℃ |
| Max. 218 psi | 150 rpm | Max. 392°F |
| Max. 15 bar | - | - |
Inner Pipe Type
| Monoflow | Duoflow (Fixed Pipe) | Duoflow (Rotating Pipe) |
|---|---|---|
| LCHT | LCHP | LCHD |
Size & Connection Part Shape
-
Standard size 3/4 ~ 1 1/2
*Contact us if the size is over standard type.
-
Connection part shape: Screw (RH or LH) or Flange
| Horizontal | Vertical (Rotating Part is Upper Side) | Vertical(Rotating Part is Lower Side) |
|---|---|---|
| ✔ | * | * |
*Please contact us for more details
Installation Dimensions
*Please request catalog to check details of dimensions
