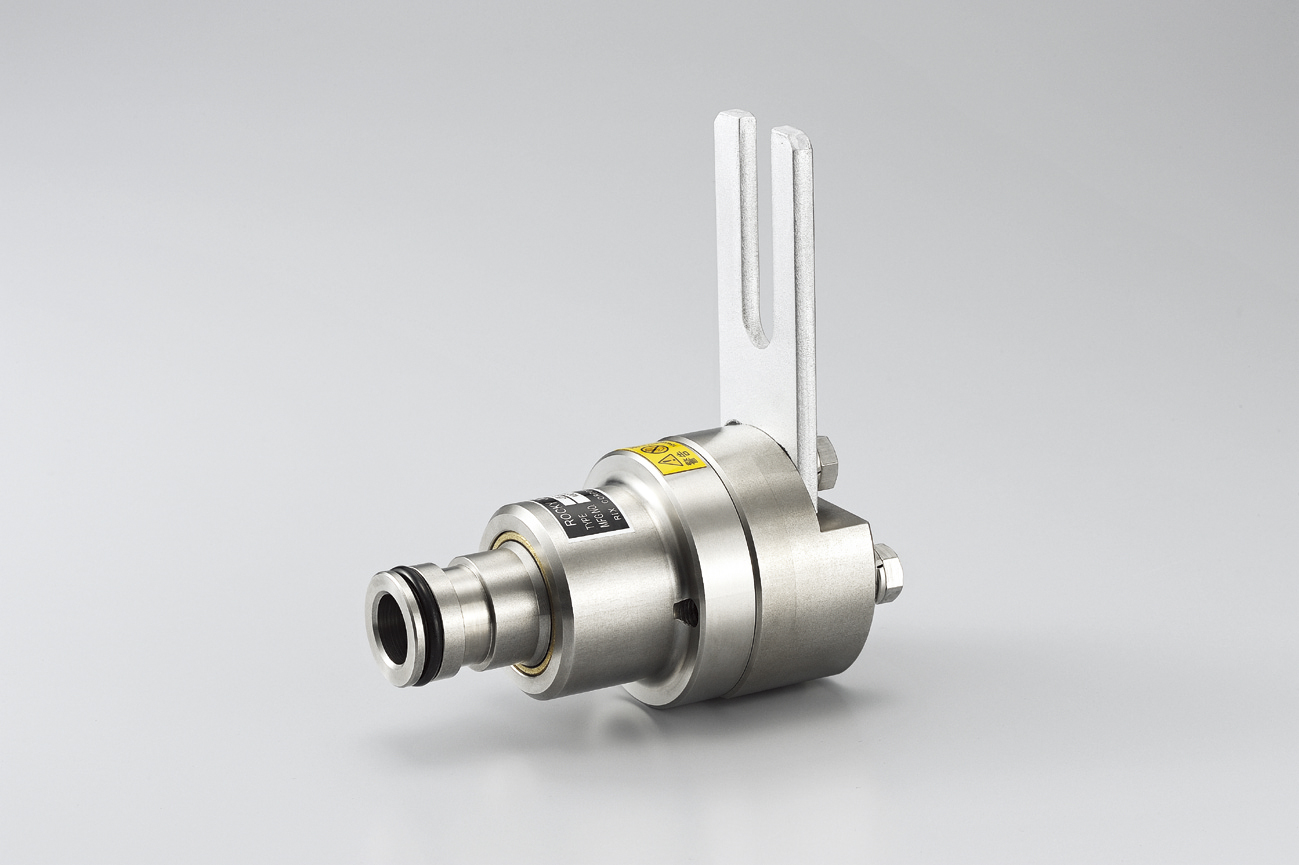

J Type Rotary Joint
Industry: Steel
- Long Life: Minimal surface wear and roughness
- Seal Ring: Carbon
- Insert Seal: Ceramic
- Easy Maintenance: Parts do not need to be replaced, and can be maintained on site.
- Main Body: Stainless steel and Cu alloy (resistant to corrosion)
Fluid
| Water | Saturated Vapor | Heat Transfer Oil |
|---|---|---|
| ✔ | N/A | N/A |
Operating Specifications
| Pressure | Max. Speed | Temp. |
|---|---|---|
| Max. 1.5 MPa | 10 mim-1 | Max. 100℃ |
| Max. 218 psi | 10 rpm | Max. 212°F |
| Max. 15 bar | - | - |
Inner Pipe Type
| Inner Pipe Type | Monoflow | Duoflow (Fixed Pipe) | Duoflow (Rotating Pipe) |
|---|---|---|---|
| Roll External Type | JT | JP | JD |
| Roll Embedding Type | JTU | JPU | JDU |
Size & Connection Part Shape
-
Standard size 1/2 ~ 1 1/2
*Contact us if the size is over standard type.
-
Connection part shape: Screw (RH or LH) or Flange
| Horizontal | Vertical (Rotating Part is Upper Side) | Vertical(Rotating Part is Lower Side) |
|---|---|---|
| ✔ | N/A | N/A |
