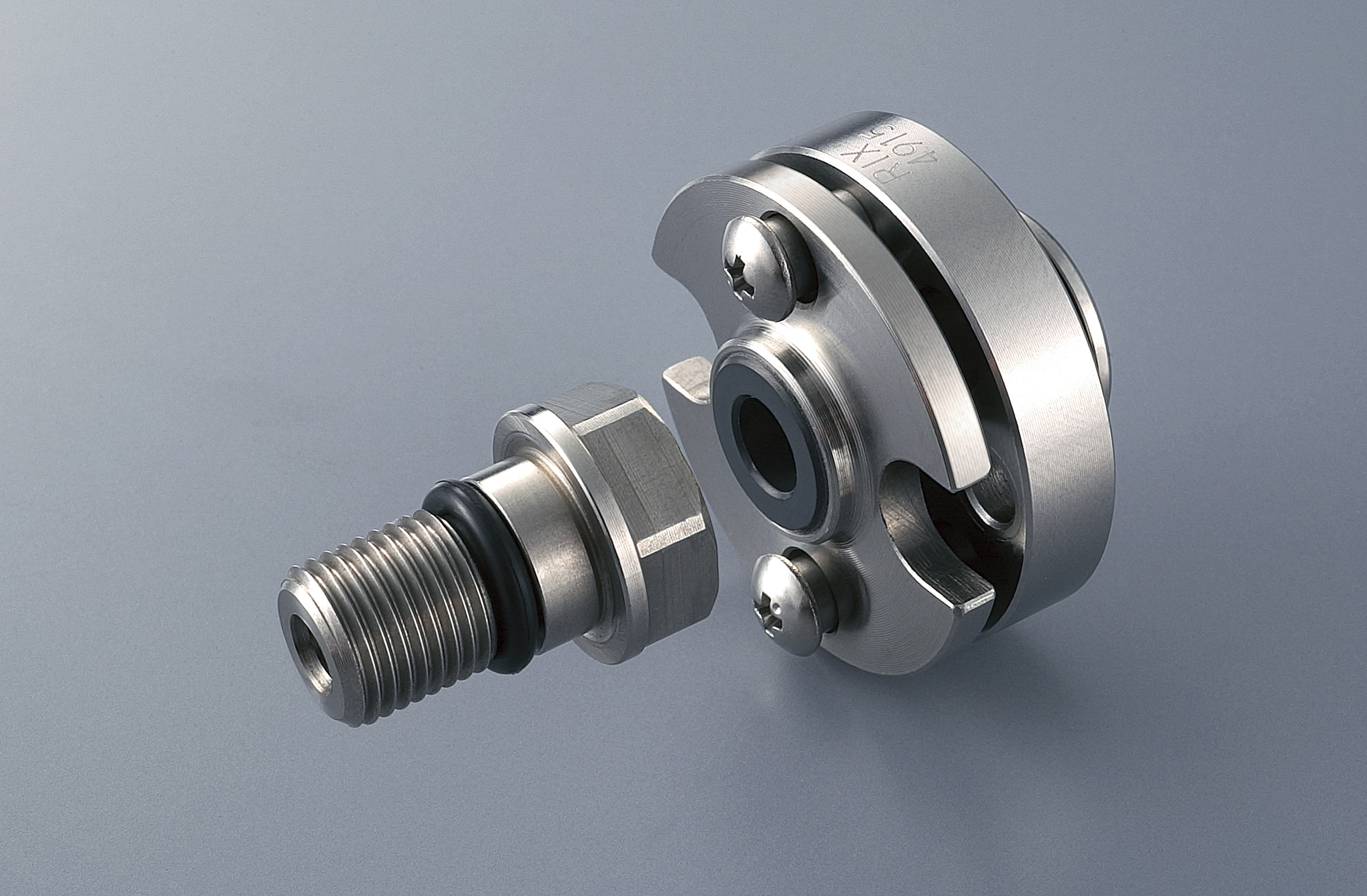

ESX20M - T Series Rotary Joint
Industry: Machine Tool
- Minimum length type
- Applicable for M10 rotor
- Body: Stainless steel
- Minimizes drainage by maintaining seal contact (ES20M-T010)
Fluid
<ES20M>
| Fluid | Coolant | Oil Mist | Dry Air |
|---|---|---|---|
| Pressure (MPa) | ~12 | ~1 | N/A |
| Pressure (psi) | ~1,740 | ~145 | N/A |
| Pressure (bar) | ~120 | ~10 | N/A |
<ESX20M>
| Fluid | Coolant | Oil Mist | Dry Air |
|---|---|---|---|
| Pressure (MPa) | 0.5~12 | 0.2~1 | N/A |
| Pressure (psi) | 72.5~1,740 | 29~145 | N/A |
| Pressure (bar) | 5~120 | 2~10 | N/A |
Operating Specifications
| Specification | Flow Rate (Coolant) | Max. Speed | Max. Temperature |
|---|---|---|---|
| Number | Below 20 L/min | Max. 40,000 min-1 | Max. 60 ℃ |
| Number | Below 5.28 gal/min | Max. 40,000 rpm | Max. 140 °F |
Installation Direction
| Horizontal | Vertical (Rotating Part is Upper Side) | Vertical (Rotating Part is Lower Side |
|---|---|---|
| ✔ | ✔ | ✔ |
Installation Specification
<ES20M>
| Rotation Without Fluid | Min Flow Rate to Operate Seal (In Case Fluid is Coolant) | * Thrust loading to spindle side |
|---|---|---|
| N/A | N/A | 550N |
<ESX20M>
| Rotation Without Fluid | Min Flow Rate to Operate Seal (In Case Fluid is Coolant) | * Thrust loading to spindle side |
|---|---|---|
| ✔ | Over 10 L/min | 5500N |
| ✔ | Over 2.64 gal/min | 5500N |
Note)
* Thrust loading to spindle side
- Thrust loading is directly proportional to fluid pressure.
- In case fluid pressure is 7 MPa (1,015 psi, 70 bar).
Outline Drawings and Installation Dimensions
*Please request a catalog to check details of dimensions.
